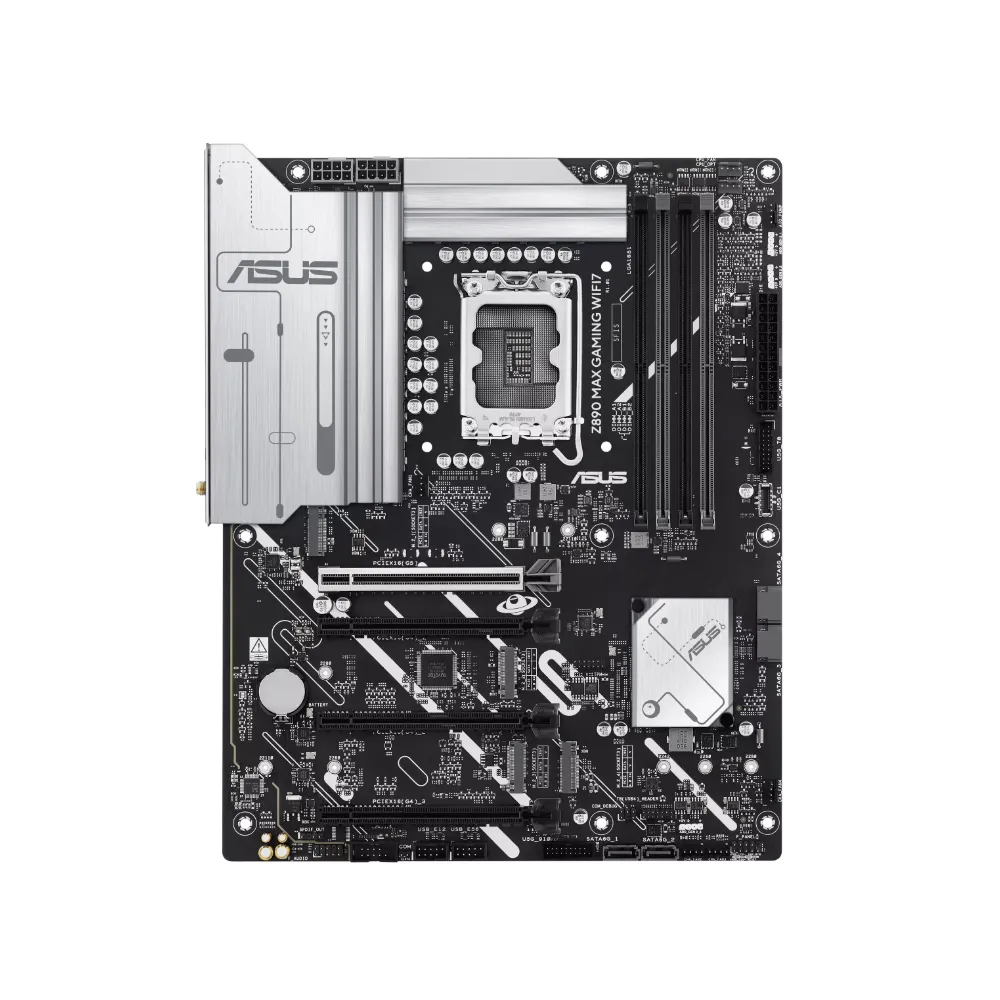

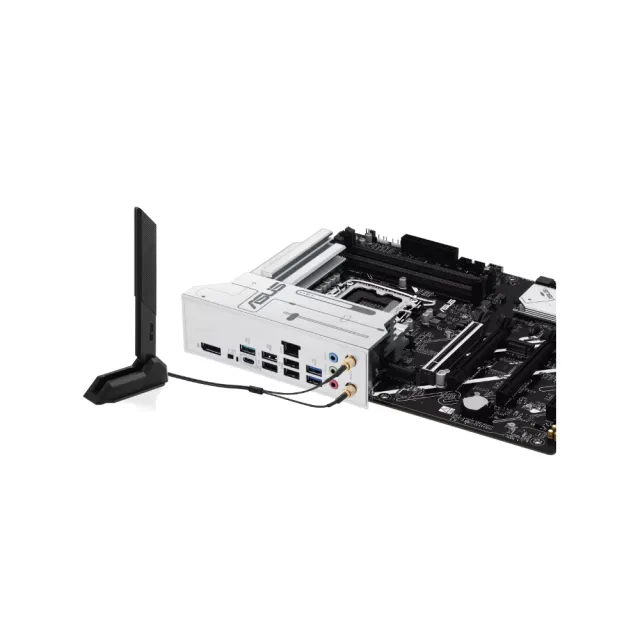

ASUS 華碩 Z890 MAX GAMING WIFI7 主機板
-
$7,490
促銷價
| 折價券 | 查看可使用的折價券 | |
|---|---|---|
| 品牌名稱 |
ASUS 華碩追蹤 |
|
| 付款方式 | 刷momo卡消費回饋最高3%！ | |
| 配送方式 |
|
|
| 商品規格 | 請選擇 | |
可參加以下優惠活動
- on
- on
- on
- on
- on
- on
- on
- on
- on
- on
- on
- on
看更多「主機板/擴充卡」熱門商品
- #ASUS 華碩
商品評分
- AI Solutions
- AEMP III
- WiFi 7
| 品牌名稱 | |
|---|---|
| 尺寸 |
|
| 腳位 |
|
| 容量 |
|
| 保固期 |
|
|
品名：Z890 MAX GAMING WIFI7
●CPU：
Supports Intel☆ Core™ Ultra Processors(Series 2), LGA1851*
Supports Intel☆ Turbo Boost Technology 2.0 and Intel☆ Turbo Boost Max Technology 3.0**
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
** Intel☆ Turbo Boost Max Technology 3.0 support depends on the CPU types.
●Chipset：
Intel☆ Z890 Chipset
●Memory：
4 x DIMM slots, max. 256GB, DDR5
Supports up to 8666+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel☆ Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
●Graphics：
1 x DisplayPort**
1 x USB 20Gbps port (USB Type-C☆) supports DisplayPort video output***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
***Supports max. 4K@120Hz as specified in DisplayPort 1.4.
****VGA resolution support depends on processors' or graphic cards' resolution.
*****While installing the operating system, please ensure that your monitor is connected to the DisplayPort on the back I/O panel or to a discrete graphics card.
●Storage：
．Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
．Intel☆ Core™ Ultra Processors(Series 2) *
M.2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
．Intel☆ Z890 Chipset
M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* Intel☆ Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
●Ethernet：
1 x Realtek 2.5Gb Ethernet
ASUS LANGuard
●USB：
Rear USB (Total 8 ports)
1 x USB 20Gbps port (1 x USB Type-C☆ with DP Alt mode)
1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)*
Front USB (Total 9 ports)
1 x USB 5Gbps connector (supports USB Type-C☆)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports*
* USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth. USB_E5 port, USB_E6 port and USB_E7 port share the bandwidth.

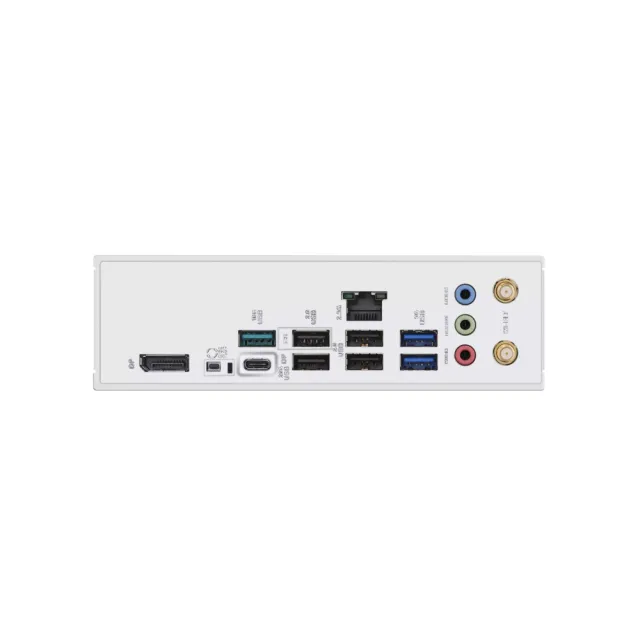

●Back Panel I/O Ports：
1 x USB 20Gbps port (1 x USB Type-C☆ with DP Alt mode)
1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack™ button
●Internal I/O Connectors
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
Storage Related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 5Gbps connector (supports USB Type-C☆ )
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen2 headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin Front Panel System header
1 x Thunderbolt™ (USB4☆) Header
●Operating System：
Windows 11(22H2 & later)
●Form Factor：
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
備註：以上規格僅供參考，如有任何問題，請依原廠公告為主。
