品號：15150520
$22,739
限時折後價總銷量>50
$25,840
促銷價$28,390
市售價現折滿1件享88折
活動賣場
折價券
付款方式
配送方式
品牌名稱
ASUS 華碩
．
商品組合
組合商品無法單一退換貨，詳情請參閱退換貨須知

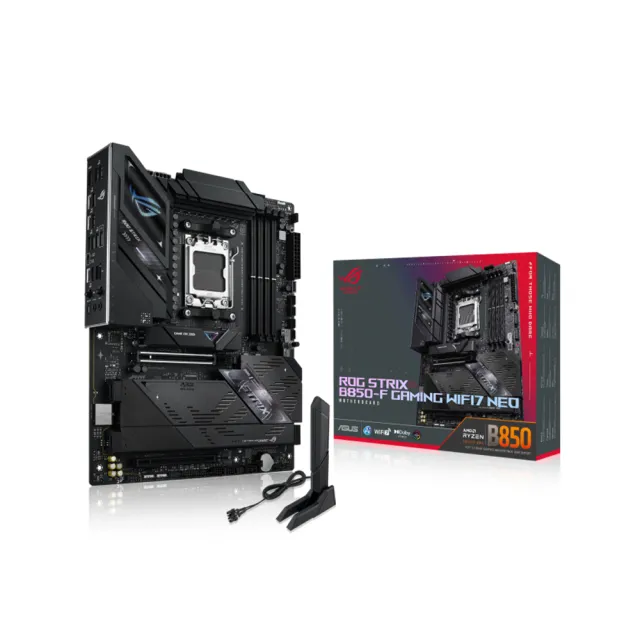

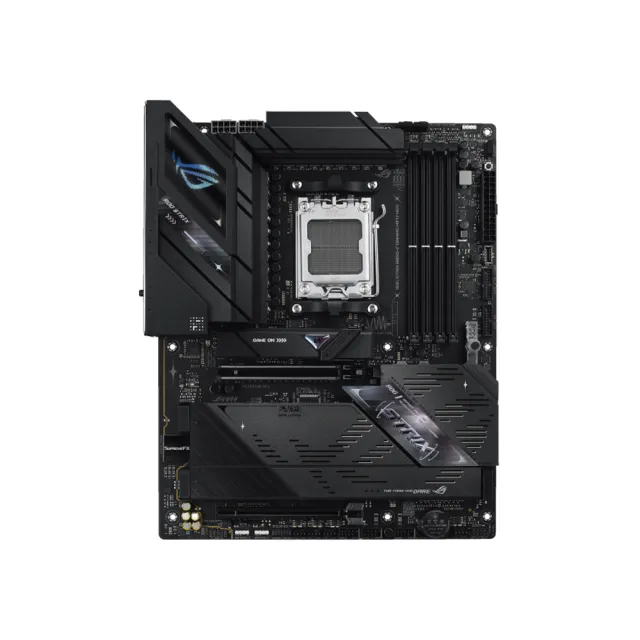

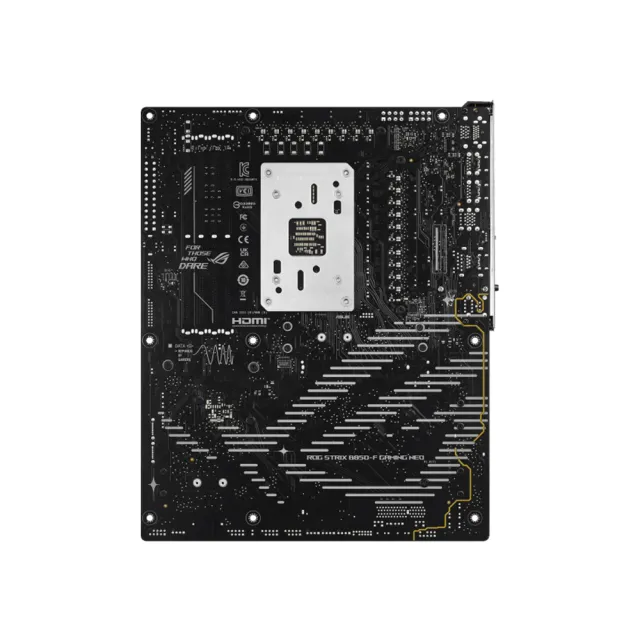

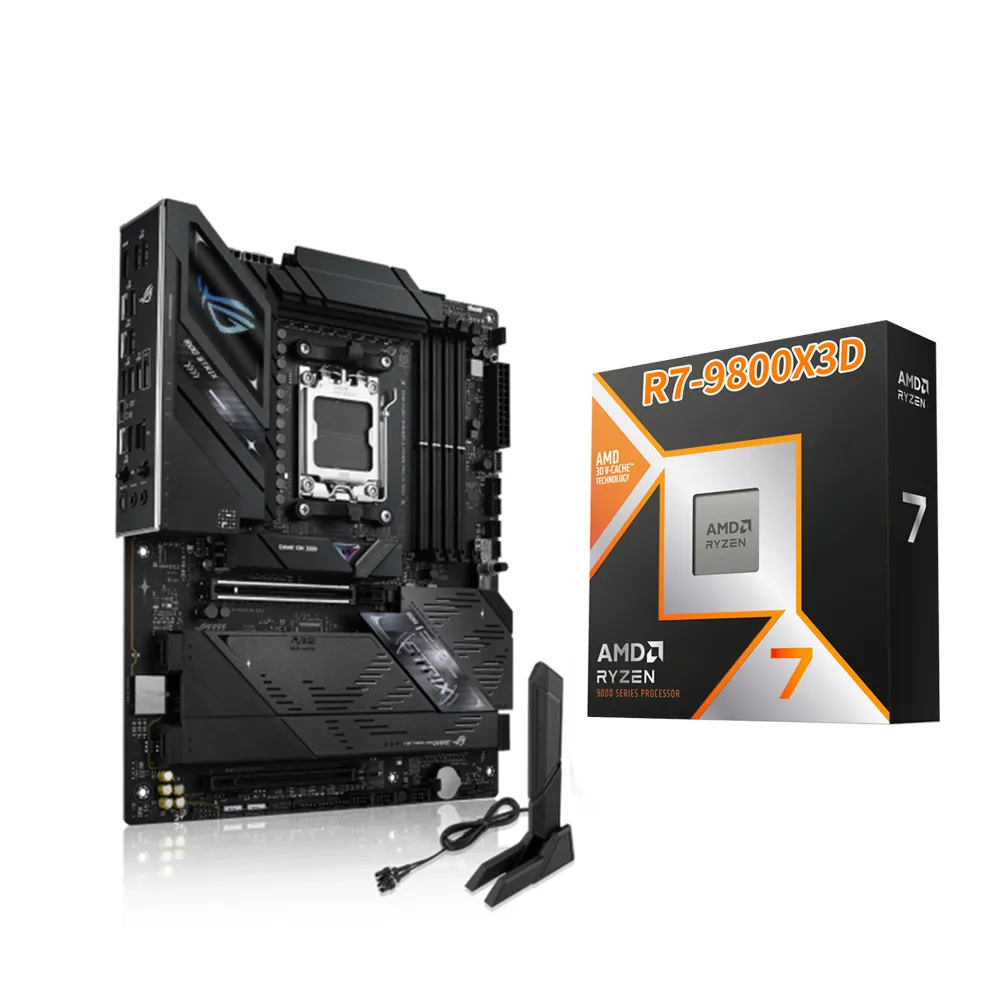

【ASUS 華碩】ROG STRIX B850-F GAMING WIFI7 NEO 主機板
x1

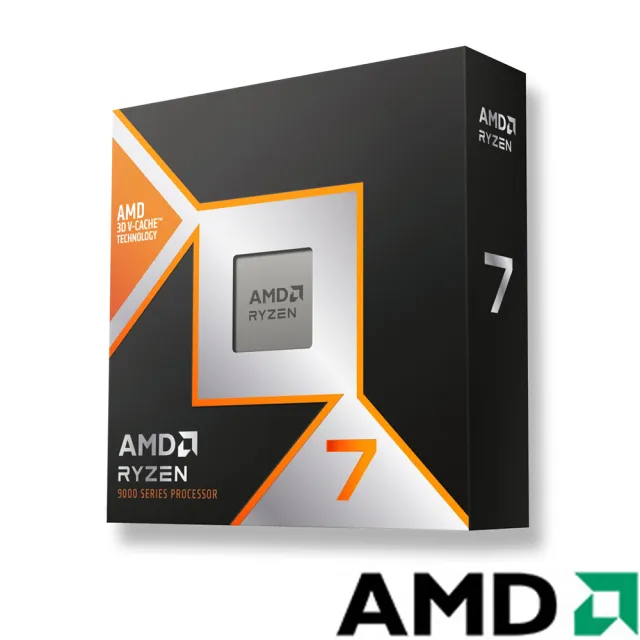

【AMD 超微】Ryzen R7-9800X3D 8核心 CPU處理器(4.7 GHz)
x1
可參加以下優惠活動
登記送
- 累積滿8,000元送 mo點2.3%，上限400元
- 累積滿25,000元送 mo點2.5%，上限650元
- 累積滿35,000元送 mo點2.8%，上限1,000元
看更多「主機板/擴充卡」熱門商品
相關分類
總銷量>50
圖文詳情
- AI Cache Boost
- 16 + 2 + 2 電源解決
- WIFI 7
商品規格
品牌名稱
尺寸
ATX
容量
4
腳位
AM5
**詳細規格請至官網查看**
品名：ROG STRIX B850-F GAMING WIFI7 NEO
●CPU：
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
●晶片組：
AMD B850 Chipset
●記憶體：
4 x DIMM slots, max. 256GB, DDR5
Supports up to 9000+MT/s (OC)**, ECC and Non-ECC
Supports up to
8400+(OC)**/8200+(OC)*** MT/s with Ryzen™ 9000 Series Processors,
9000+(OC)**/8600+(OC)*** MT/s with Ryzen™ 8000 Series Processors,
8000+(OC)**/8000+(OC)*** MT/s Ryzen™ 7000 Series Processors,
ECC and Non-ECC, Un-buffered DIMM
*Dual channel memory architectureSupports AMD Extended Profiles for Overclocking (EXPO™)ASUS Enhanced Memory Profile (AEMP)* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
** Max Manual Overclocking: Achievable with advanced BIOS configuration and potentially specialized hardware. Results may vary according to system components.
*** XMP/EXPO/AEMP Profiles: Rated memory module speeds require a BIOS performance profile setting. Results may vary according to system components and can be impacted when four DIMM slots are used.
**** Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
●擴充槽：
AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors*
1 x PCIe 4.0 x16 slots (supports x8 mode)
AMD Ryzen™ 8500 & 8300 Series Desktop Processors*
1 x PCIe 4.0 x16 slots (supports x4 mode)
AMD B850 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)**
* Specifications vary by CPU types.
** PCIEX16(G4) slot (supports x4 mode) from AMD B850 Chipset shares bandwidth with M.2_3
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
●資料儲存應用：
Total supports 4 x M.2 slots and 2 x SATA 6Gb/s ports
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
AMD Ryzen™ 8500 & 8300 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x2 mode)
AMD B850 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4)**
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)
2 x SATA 6Gb/s ports
* M.2_3 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_3 will be disabled.
●後面板輸出端子：
4 x USB 10Gbps port(s) (2 x Type-A + 2 x USB Type-C)
6 x USB 5Gbps port(s) (5 x Type-A + 1 x USB Type-C)
2 x USB 2.0 port(s) (2 x Type-A)
1 x HDMI™ port
1 x Wi-Fi module
1 x Realtek 5Gb Ethernet port
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
●Wireless & Bluetooth：
Wi-Fi 7 (802.11be) / 支援 6GHz 頻段, Bluetooth 5.4 (支援 LE Audio)
●Form Factor：
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
備註：以上規格僅供參考，如有任何問題，請依原廠公告為主。
依商品文案說明
